The a-Actinin Family (actinogelin)

Page updated 27/2/03


a-actinin is composed of two identical anti-parallel peptides, with the actin binding domain close to the N terminus, followed by 4 spectrin-like repeats and terminating with two EF-hands (calcium binding motifs).  In calcium insensitive isoforms these EF-hands are not active.   It is thought that calcium sensitivity of actin binding arises from the proximity of the EF-hand at the tail of one molecule abutting on the actin binding head of its partner.

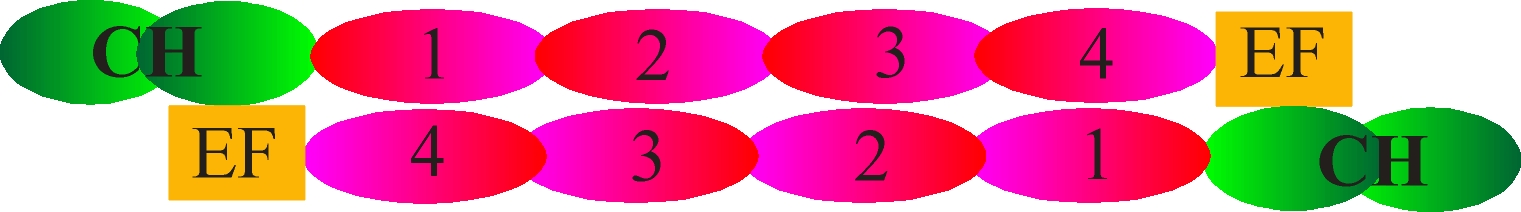

Figure 1.  The a-actinin dimer.  CH = Calponin homology domain. Spectrin repeats 1-4, EF = EF hands Ca²⁺ binding domains.

Other a-actinin binding proteins.
A host of proteins other than actin are known to bind a-actinin. Many of these interactions are structural, especially in muscle cells, others are involved in signalling cascades and others (such as the EPEC protein Tir) are involved in pathogenesis (Table 1).

At low concentration of a-actinin relative to actin, viscosity is increased as the filaments are linked in an isotropic gel where the filaments meet each other.  At higher concentration a-actinin bundles, draws together filaments into parallel and/or anti-parallel actin filaments.  The balance between cross-linking and bundling is determined by a number of factors, a-actinin binds to filament bundles in preference to single filaments (Gratzi et al,1992), as the local concentration of binding sites is greater, however once an isotropic gel is formed the gel becomes locked into this configuration.  If an isotrpoic gel is pulled for example with a needle, this breaks the gel and aligns the filaments in the direction of the applied force and this then tips the balance permitting bundling ().  The balance can also be tipped by the severing action of the ADF/cofilins (Maciver et al, 1991).  Severing is thought to allow the short a-actinin decorated filaments to zip together.  Once zipping the filaments are now longer able to be severed by the ADF/cofilins (as severing by this group is passive - see severing by ADF/cofilins), thus large filament aggregates are formed in vitro (Maciver et al, 1991) and possibly in vivo (Aizawa et al, 1997).

Many actin-binding proteins are regulated by polyphosphoinositides, particularly phosphatidylinositol 4,5 bis-phosphate (PIP₂).  a-actinin from chicken smooth and skeletal muscle binds PIP₂ through residues 168-184 a region within CH2 (Fukami et al, 1992; Fukami et al, 1994), the second calponin homology domain segment in the a-actinin family that strengthens the actin interaction but does not itself bind actin (Norwood et al, 2000). Whereas some (Fukami et al, 1992) find that PIP₂ increased F-actin gelating activity of a-actinin, others (Fraley et al, 2003) find that PIP₂ inhibit bundling of actin by a-actinin.  These differences probably reflect differences in the methods used.

References:-

Aizawa, H., Fukui, Y. & Yahara, I. (1997) Live dynamics of Dictyostelium cofilin suggestes a role in remodeling actin latticework into bundles, J.Cell Sci. 110, 2333-2344.

Atkinson, R. A., Joseph, C., Dal Piaz, F., Birolo, L., Steir, G., Pucci, P. & Pastore, A. (2000) Binding of a-actinin to titin: Implications for Z-disk assembly, Biochemistry. 39, 5255-5264.

Belkin, A. M. and V. E. Koteliansky (1987). "Interaction of iodinated vinculin, metavinculin and a-actinin with cytoskeletal proteins." FEBS letters 220, 291-294.

Blanchard, A., V. Ohanian, et al. (1989). "The structure and function of a-actinin." J. Mus. Res. and Cell Mot 10, 280-289.

Bricheux, G., G. Coffe, et al. (1998). "Evidence for an uncommon a-actinin protein in Trichomonas vaginalis." Mol.Biochem.Parasitol. 95: 241-249.

Christerson, L. B., Venderbilt, C. A. & Cobb, M. H. (1999) MEKK1 interacts with a-actinin and localizes to stress fibers and focal adhesions., Cell Motility Cytoskeleton. 43, 186-198.

Davidson, M. D. and D. R. Critchley (1988). "a-actinins and the DMD protein contain spectrin-like repeats." Cell 52, 159-160.

Djinovic-Carugo, K., P. Young, et al. (1999). "Structure of the a-actinin rod: Molecular basis for cross-linking of actin filaments." Cell 98, 537-546.

Fraley, T. S., Tran, T. C., Corgan, A. M., Nash, C. A., Hao, J., Critchley, D. R. & Greenwood, J. A. (2003) Phosphoinositide binding inhibits a-actinin bundling activity. J. Biol. Chem. 278, 24039-24045.

Fukami, K., T. Endo, et al. (1994). "a-Actinin and vinculin are PIP₂-binding proteins involved in signaling by tyrosine kinase." J. Biol. Chem. 269(2), 1518-1522.

Furukawa, R. and M. Fechheimer (1994). "Differential localization of a-actinin and the 30 kD actin-bundling protein in the cleavage furrow, phagocytic cup, and contractile vacuole of Dictyostelium discoideum." Cell Motility and Cytoskeleton 29, 46-56.

Galliano, M.-F., C. Huet, et al. (2000). "Binding of ADAM12, a marker of skeletal muscle regeneration, to the muscle-specific actin-binding protein, a-actinin-2, is required for myoblast fusion." J.Biol.Chem. 275(18), 13933-13939.

Goosney, D. L. et al. Enteropathogenic E. coli translocated intimin receptor, Tir, interacts directly with [alpha]-actinin. Curr. Biol. (in the press).

Goldmann, W. H. and Z. Guttenberg (1998). "Examination of temperature-induced "gel-sol" transformation of a-actinin/crosslinked actin networks by static light scattering." FEBS letters 426, 255-259.

Goldmann, W. H. and G. Isenberg (1993). "Analysis of filamin and a-actinin binding to actin by the stopped flow method." FEBS letters 336(3),  408-410.

Goldmann, W. H., J. M. Teodoridis, et al. (1999). "Fragments from a-actinin insert into reconstituted lipid bilayers." BBRC 264, 225-229.

Grazi, E., Cuneo, P., Magri, E. & Schwienbacher, C. (1992) Preferential binding of a-actinin to actin bundles. FEBS letters. 314, 348-350.

Greene, D. K., Tumova, S., Couchman, J. R. & Woods, A. (2003) Syndecan-4 Associates with a -actinin. J. Biol. Chem. 278, 7617-7623.

Hemmings, L., P. A. Kuhlman, et al. (1992). "Analysis of the actin-binding domain of a-actinin by mutagenesis and demonstration that dystrophin contains a functionally homologous domain." J. Cell Biol 116, 1369-1380.

Hijikata, T., Z. X. Lin, et al. (1997). "Unanticipated temporal and spacial effects of sarcomeric a-actinin peptides expressed in PtK2 cells." Cell Mot. Cytoskeleton 38, 54-74.

Keller, H. U. and V. Niggli (1993). "Colchicine-induced stimulation of PMN motility related to cytoskeletal changes in actin, a-actinin, and myosin." Cell Mot.Cytoskel. 25, 10-18.

Kuhlman, P. A., J. Ellis, et al. (1994). "The kinetics of the interaction between the actin-binding domain of a-actinin and F-actin." FEBS Lett. 339, 297-301.

Leinweber, B., Z. X. Tang, et al. (1999). "Calponin interaction with a-actinin-actin: evidence for a structural role for calponin." Biophys. J. 77, 3208-3217.

McGough, A., M. Way, et al. (1994). "Determination of the a-actinin-binding site on actin filaments by cryoelectron microscopy and image analysis." J. Cell Biol. 126(2): 433-443.

McGregor, A., A. D. Blanchard, et al. (1994). "Identification of the vinculin-binding site in the cytoskeletal protein a-actinin." Biochem. J. 301: 225-233.

Meng, Y., T. Yasunaga, et al. (1995). "Determination of the protein components of native thin filaments isolated from natural actomyosin: Nebulin and a-actinin are associated with actin filaments." J.Biochem. 118, 422-427.

Meyer, R. K. and U. Aebi (1990). "Bundling of actin filaments by a-actinin depends on its molecular length." J. Cell Biol. 110, 2013-2024.

Muguruma, M., S. Matsumura, et al. (1992). "Augmentation of a-actinin-induced gelation of actin by talin." J.Biol.Chem. 267,  5621-5624.

Noegel, A. A., S. Rapp, et al. (1989). "The Dictyostelium gelation factor shares a putative actin binding site with a-actinins and dystrophin and also has a rod domain containing six 100-residue motifs that appear to have a cross-beta conformation." J. Cell Biol. 109, 607-618.

Norwood, F. L. M., Sutherland-Smith, A. J., Keep, N. H. & Kendrick-Jones, J. (2000) The structure of the N-terminal actin-binding domain of human dystrophin and how mutations in this domain may cause Duchenne or Becker Muscular Dystrophy., Structure. 8, 481-491.

Otey, C. A., G. B. Vasquez, et al. (1993). "Mapping of the a-actinin binding site with the b₁

Pomies, P., Macalma, T. & Beckerle, M. C. (1999) Purification and characterization of an a-actinin-binding PDZ-LIM protein that is up-regulated during muscle differentiation. J.Biol.Chem. 274, 29242-29250.

Ponte, E., Rivero, F., Fechheimer, M., Noegel, A.A., & Bozzaro, S. (2000). "Severe developmental defects in Dictyostelium discoidium null mutants for actin-binding proteins." Mech.Development 91, 153-161.

Parast, M. M. & Otey, C. A. (2000) Characterization of palladin, a novel protein localized to stress fibers and cell adhesions. J. Cell Biol. 150, 643-655.

Reinhard, M., J. Zumbrunn, et al. (1999). "An a-actinin binding site of zyxin is essential for subcellular zyxin localization and a-actinin recruitment." J.Biol.Chem. 274,  13410-13418.

Rivero, F., R. Furukawa, et al. (1999). "Three actin cross-linking proteins, the 34 kDa actin bundling protein, a-actinin and gelation factor (ABP-120), have both unique and redundant roles in the growth and development of Dictyostelium." J.Cell Sci. 112, 2737-2751.

Rüdiger, M. (1998). "Vinculin and a-actinin: shared and unique functions in adherens junctions." BioEssays 20, 733-740.

Sorimachi, H., A. Freiburg, et al. (1997). "Tissue-specific expression and a-actinin binding properties of the Z-disc titin: Implications for the nature of vertebrate Z-discs." J.Mol.Biol. 270, 688-695.

Vallenius, T., K. Luukko, et al. (2000). "CLP-36 PDZ-LIM protein associates with non-muscle a-actinin-1 and a-actinin-4." J.Biol.Chem. 275(15), 11100-11105.

Viel, A. (1999). "a-actinin and spectrin structures: an unfolding story." FEBS letters.

Wachsstock, D. H., W. H. Schwarz, et al. (1993). "Affinity of a-actinin for actin determines the structure and mechanical properties of actin filament gels." Biophys. J. 65,  205-214.

Wachsstock, D. H., J. A. Wilkins, et al. (1987). "Specific interaction of vinculin with a-actinin." Biochem.Biophys.Res.Comm. 146(2), 554-560.

Wagner, O., J. Zinke, et al. (1999). "Viscoelastic properties of f-actin, microtubules, f-actin/a-actinin, and f-actin/hexokinase determined in microlitre volumes with a novel nondestructive method." Biophysics J 76, 2784-2796.

Watts, R. G. and T. H. Howard (1994). "Role of tropomyosin, a-actinin, and actin binding protein 280 in stabilizing triton insoluble F-actin in basal and chemotactic factor activated neutrophils." Cell Mot.Cytoskel. 28, 155-164.

Way, M., B. Pope, et al. (1991). "Molecular biology of actin binding proteins: evidence for a common structural domain in the F-actin binding sites of gelsolin and alpha-actinin." J. Cell Sci. Supplement 14, 91-94.

Way, M., B. Pope, et al. (1992). "Evidence for functional homology in the F-actin binding domains of gelsolin and alpha-actinin: implications for the requirements of severing and capping." J. Cell Biol. 119, 835-842.

Winkler, J., H. Lünsdorf, et al. (1997). "Flexibility and fine structure of smooth-muscle a-actinin." Eur.J.Biochem. 248, 193-199.

Young, P., C. Ferguson, et al. (1998). "Molecular structure of the sarcomeric Z-disk: two types of titin interactions lead to an asymetric sorting of a-actinin." EMBO J. 17(6), 1614-1624.

Yürüker, B. and V. Niggli (1992). "a-actinin and vinculin in human neutrophils: reorganization during adhesion and relation to the actin network." J.Cell Sci. 101, 403-414.

Zhou, Q., P. Ruiz-Lozano, et al. (1999). "Cypher, a striated muscle-restricted PDZ and LIM domain-containing protein, binds to a-MARCKSactinin-2 and protein kinase C." J.Biol.Chem. 274(28), 19807-19813.
